Best Way To Insulate Conservatory Roof

The best way to insulate a conservatory roof is a crucial consideration for homeowners seeking to maximize energy efficiency and comfort. This involves understanding the various insulation materials available, from solid panels to spray foam and the optimal installation techniques for each. Factors such as roof pitch, climate, and window type significantly influence the effectiveness of your chosen insulation method. By carefully evaluating these elements, you can create a warm, comfortable, and energy-efficient conservatory year-round.

This guide explores the different types of conservatory roof insulation, comparing their thermal performance, cost, and longevity. We’ll delve into practical installation methods, highlighting the importance of sealing air leaks and incorporating proper ventilation. We’ll also consider the impact of external factors like climate and roof orientation on your insulation choices and provide tips for maximizing the energy efficiency of your conservatory.

Types of Conservatory Roof Insulation: Best Way To Insulate Conservatory Roof

Choosing the right insulation for your conservatory roof significantly impacts its energy efficiency and overall comfort. This section compares three common roofing materials: solid panels, polycarbonate, and glass, considering their thermal performance, cost, and lifespan. Understanding these factors will help you make an informed decision based on your budget and climate.

Comparison of Conservatory Roof Panel Materials

The following table summarizes the thermal performance, cost, and lifespan of different conservatory roof panel materials. Note that costs and lifespans can vary depending on the specific product and manufacturer.

Material	R-Value (Approximate)	Cost (Approximate per m²)	Lifespan (Years)
Solid (e.g., timber with insulation)	2.0 – 4.0	£100 – £250	30+
Polycarbonate	0.8 – 1.5	£50 – £150	15-20
Glass (double or triple-glazed	1.0 – 3.0+ (depending on glazing type)	£80 – £200+	20+

Advantages and Disadvantages of Conservatory Roof Insulation Materials

Each roofing material offers unique advantages and disadvantages concerning insulation.

• Solid Panels: Advantages include high R-values, excellent sound insulation, and long lifespan. Disadvantages are higher initial cost and potentially more complex installation.
• Polycarbonate: Advantages include lightweight, relatively inexpensive, and good light transmission. Disadvantages are lower R-values compared to solid panels and the potential for yellowing or degradation over time.
• Glass: Advantages include excellent light transmission, aesthetically pleasing, and available in various energy-efficient glazing options. Disadvantages can be higher cost, potential for heat loss if not properly insulated, and less sound insulation than solid panels.

Installation Process for Different Conservatory Roof Materials

The installation process varies depending on the chosen roofing material. Proper installation is crucial for optimal insulation performance.

• Solid Panels: Typically involves constructing a framework, installing insulation within the framework (e.g., mineral wool, rigid foam), and then attaching the solid panels. Careful sealing of all joints is essential.
• Polycarbonate: This usually involves attaching polycarbonate sheets to a pre-existing framework. Proper sealing and the use of thermal spacers are important for insulation.
• Glass: Installation involves setting the glass panels into a frame, ensuring a proper seal to prevent air leaks. Double or triple glazing significantly improves insulation.

Insulation Methods for Conservatory Roofs

Beyond the roof panel material itself, various insulation methods can further enhance your conservatory’s energy efficiency. This section explores effective techniques to minimize heat loss.

Installing Underlayment and Reflective Foil Insulation

Adding underlayment and reflective foil insulation can significantly improve the overall insulation performance of your conservatory roof.

1. Clean the roof structure thoroughly before installation.
2. Install a suitable underlayment (e.g., breathable membrane) to protect against moisture.
3. Apply reflective foil insulation, ensuring it’s properly secured and overlaps to minimize gaps.
4. Install the chosen roof panels, ensuring a tight seal around all edges.

Spray Foam Insulation for Conservatory Roofs

Spray foam insulation offers excellent air sealing and thermal performance. However, it requires a professional application.

• Application: A professional contractor sprays the foam into the roof structure, filling all gaps and crevices.
• Drawbacks: Can be expensive, requires skilled application to avoid uneven coverage, and may be difficult to remove or repair in the future.

Sealing Gaps and Air Leaks

Addressing air leaks around windows and roof structures is vital for effective insulation. Proper sealing prevents drafts and heat loss.

• Use high-quality sealant around windows and frames.
• Inspect the roof structure for any gaps or cracks and seal them appropriately.
• Consider using weather stripping around doors and windows to further minimize air infiltration.

Factors Affecting Conservatory Roof Insulation

Several factors influence the effectiveness of conservatory roof insulation. Understanding these factors helps optimize your insulation strategy.

Impact of Roof Pitch and Orientation

The pitch and orientation of your conservatory roof directly impact heat loss. A steeper pitch generally allows for better ventilation, while south-facing roofs receive more solar gain but can also experience greater heat loss in winter.

Roof Orientation	Roof Pitch (Degrees)	Summer Heat Gain	Winter Heat Loss
South	30	High	Moderate
South	15	Moderate	High
North	30	Low	Low
North	15	Low	Moderate

Influence of Climate and Weather Conditions

Climate significantly influences insulation material selection. Colder climates necessitate higher R-value materials, while milder climates may allow for less insulation.

• Consider the average annual temperature and rainfall when choosing insulation materials.
• In regions with heavy snowfall, ensure your roof can withstand the weight of accumulated snow.

Effect of Window Type and Glazing

Windows contributes significantly to heat loss in a conservatory. Double or triple glazing with low-E coatings substantially improves insulation compared to single glazing.

• Consider the U-value (heat transfer coefficient) of your windows when assessing overall insulation effectiveness.
• Ensure windows are properly sealed to prevent drafts.

Improving Conservatory Roof Insulation Performance

Even with existing insulation, several strategies can enhance the overall energy efficiency of your conservatory roof.

Incorporating Ventilation to Prevent Condensation

Proper ventilation is crucial to prevent condensation buildup, which can lead to mold and structural damage. A well-designed ventilation system ensures a comfortable and healthy environment.

• Install vents at high and low points in the roof structure to facilitate air circulation.
• Consider using automated ventilation systems for optimal control.
• Ensure adequate ventilation around windows and doors to prevent moisture buildup.

Cost-Effective Methods to Improve Existing Insulation

Several cost-effective methods can improve existing insulation without major renovations.

• Add reflective foil insulation to the existing roof structure.
• Seal any gaps or cracks in the roof and around windows and doors.
• Install thicker curtains or blinds to reduce heat loss through windows.

Energy Efficiency of Different Conservatory Designs

The energy efficiency of a conservatory varies greatly depending on its design and construction. Consider factors like roof material, glazing, and insulation levels.

Conservatory Design	Roof Material	Glazing Type	Estimated Energy Efficiency Rating (Arbitrary Scale 1-10)
Traditional Glass Roof	Glass (Single Glazed)	Single Glazed	4
Modern Solid Roof	Solid (with insulation)	Double Glazed	8
Lean-to with Polycarbonate	Polycarbonate	Single Glazed	6

Visual Representations of Insulation Techniques

Visualizing the layers and materials used in a properly insulated conservatory roof is crucial for understanding its effectiveness. This section describes the visual aspects of effective and ineffective insulation.

Appearance of a Properly Insulated Conservatory Roof

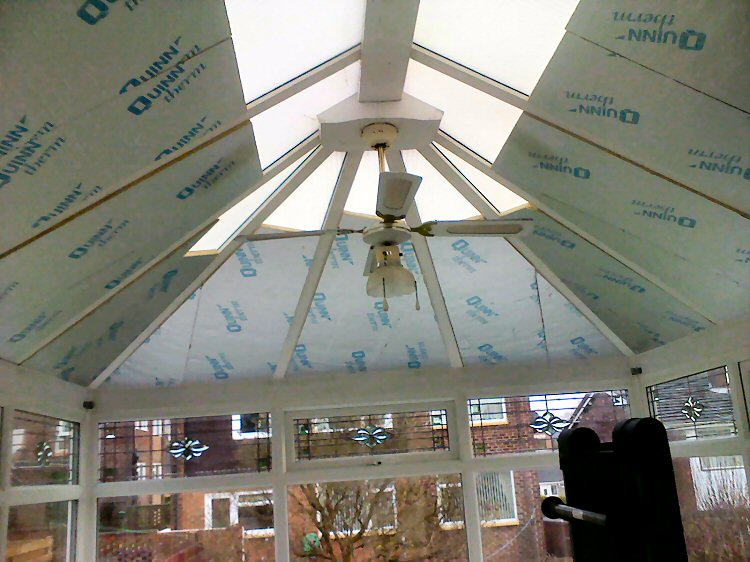

A properly insulated conservatory roof shows several distinct layers. From the exterior, you might see the chosen roofing material (e.g., glass, polycarbonate, or solid panels). Beneath this, there would be a visible layer of underlayment (a waterproof membrane), followed by the insulation layer (e.g., rigid foam, mineral wool, or spray foam). Reflective foil may also be visible in some installations. The entire structure should appear robust and well-sealed.

Visual Differences Between Effective and Ineffective Insulation, Best way to insulate conservatory roof

Effective insulation results in a uniformly covered roof structure, with no visible gaps or inconsistencies in the insulation layers. Ineffective insulation may exhibit gaps, uneven coverage, or missing layers. In poorly insulated conservatories, you may observe condensation forming on the windows or roof structure, indicating air leakage and moisture problems.

Cross-Section Diagram of an Insulated Conservatory Roof

Imagine a cross-section diagram showing the layers of a conservatory roof from the exterior to the interior. The outermost layer would be the roofing material (e.g., 10mm polycarbonate), followed by an underlayment (e.g., 2mm breathable membrane), then a layer of rigid foam insulation (e.g., 100mm), potentially reflective foil, and finally the interior ceiling finish. The thicknesses of each layer would vary depending on the specific design and insulation requirements.

Expert Answers

Can I insulate my conservatory roof myself?

While some insulation methods are DIY-friendly, others require professional expertise. Assess your skill level and the complexity of the task before attempting a self-installation. For complex projects or specialized materials, professional installation is recommended.

How often should I inspect my conservatory roof insulation?

Regular inspection, at least annually, is advisable to check for any signs of damage, deterioration, or air leaks. Early detection allows for timely repairs, preventing energy loss and potential structural issues.

What is the average cost of conservatory roof insulation?

The cost varies significantly depending on the size of your conservatory, the chosen insulation material, and whether you opt for DIY or professional installation. Obtaining quotes from multiple contractors is recommended for accurate cost estimations.

What are the potential consequences of inadequate insulation?

Inadequate insulation can lead to significant energy loss, resulting in higher energy bills, discomfort due to extreme temperatures, and potential issues like condensation and mold growth.
